Factory Directly Supply High Speed Aluminum Foil Sheet Folding Pop Up Foil Sheet Making Machine

Factory Directly Supply High Speed Aluminum Foil Sheet Folding Pop Up Foil Sheet Making Machine

1、The production process: The materialonthe machine--constanttension adjustment→embossing device→ sltting-vacuum adsorption folding (interdocking)→ molding products launched

2、Finished product size:length 273 mm × width 9 inches or 12 inches

3、Finished product folding size:length 135mm × width 9inches or 12inches

4、Finished folded shape:V fold crossed, continuous extraction

5、Embossing device:steel on the polyurethane roller

6、Applicable raw materials:0.01-0.02MM above the tolerance plus or minus 5% thickness single layer aluminum      foil

7、Raw material core size: 76mm (3inches)

8、Material size:≤p600mm × maximum width of 680mm

9、Processing capacity: 250 sheets/column points,that is, 500 sheets/minute

10、Slice size:9inches 2columns or 12 inches 2columns or 9,12inch each 1 column(please confim)

11、Power required: Roots blower motor:380V 50Hz 20KW

12、Main motor:380V 50Hz 4KW

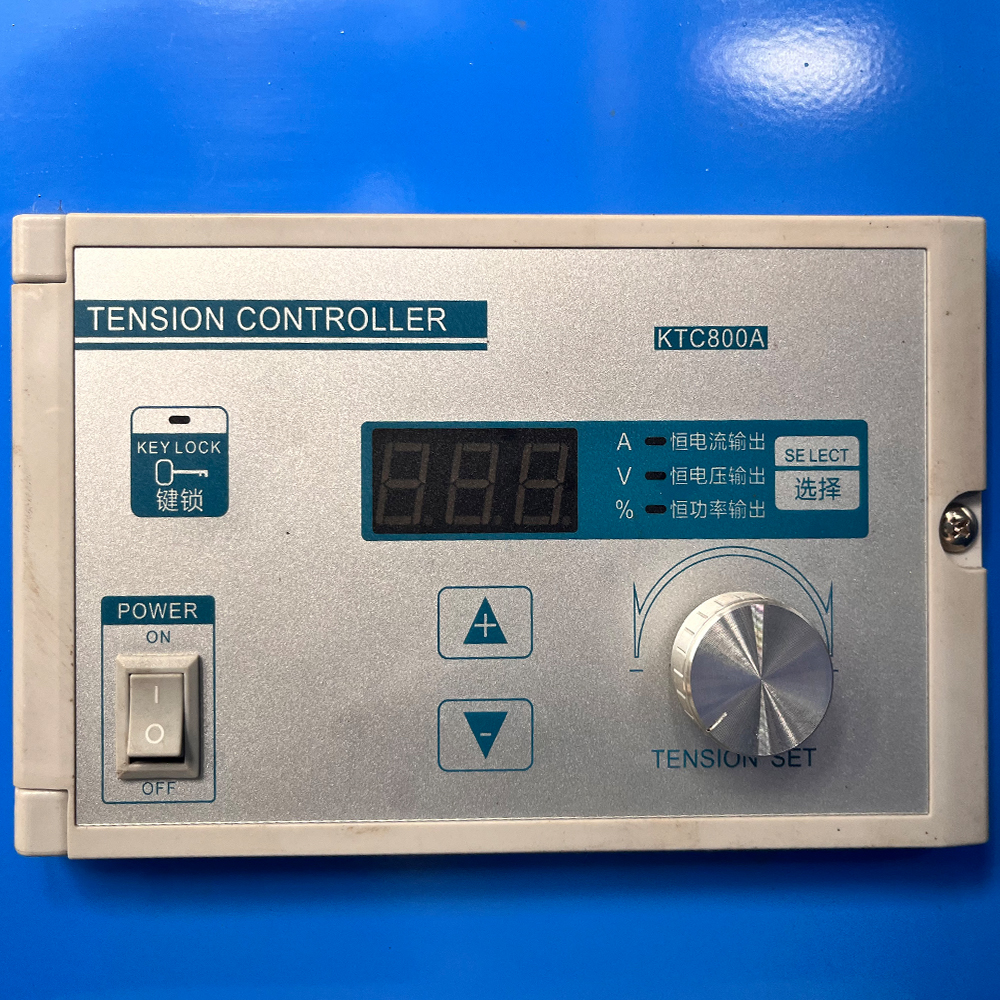

13、Constant tension motor:380V 50Hz 1KW

14、Machine weight:4000kg

15、Machine size:4.5m*2㎡*2m

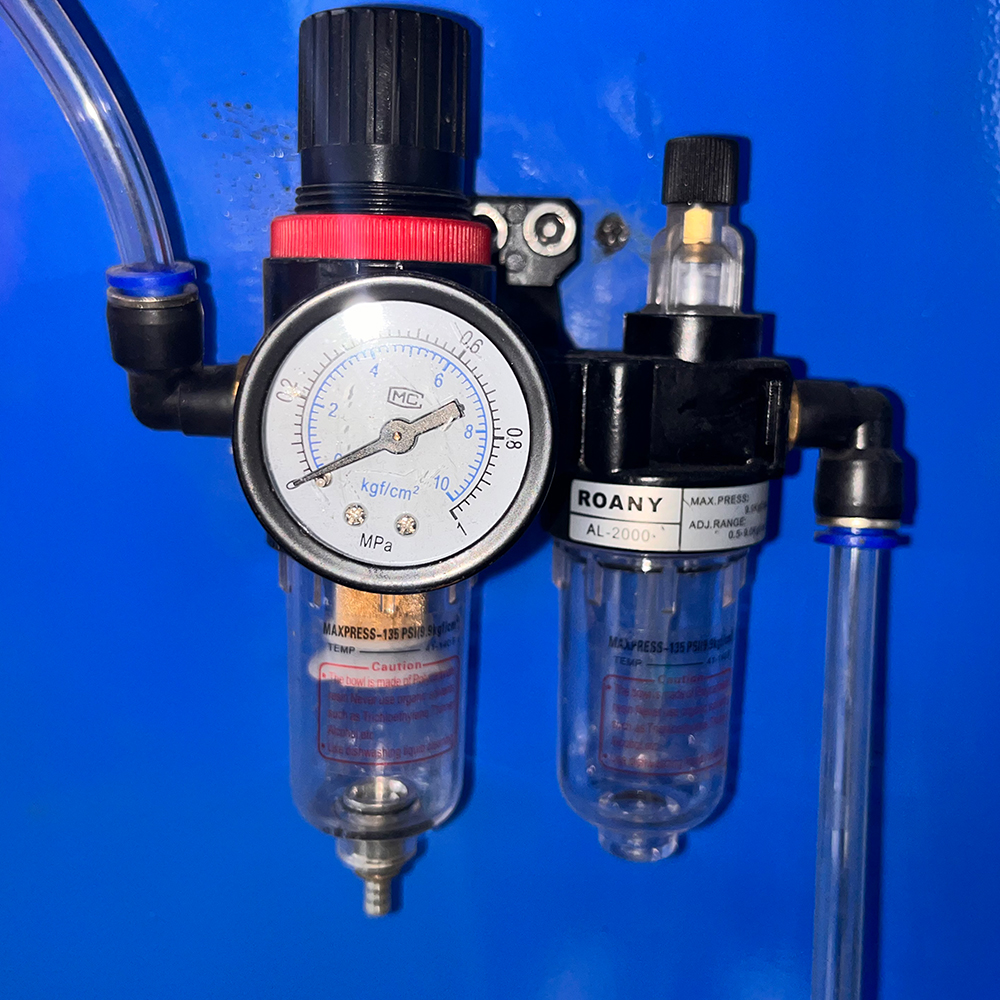

16、Air compress:0.6MPA

17、Root Blower Station (LxWxH): 1500m㎡*1000mm*2500mm

18、We also have 980mm size, one time can make three clumns (FDF-980M)

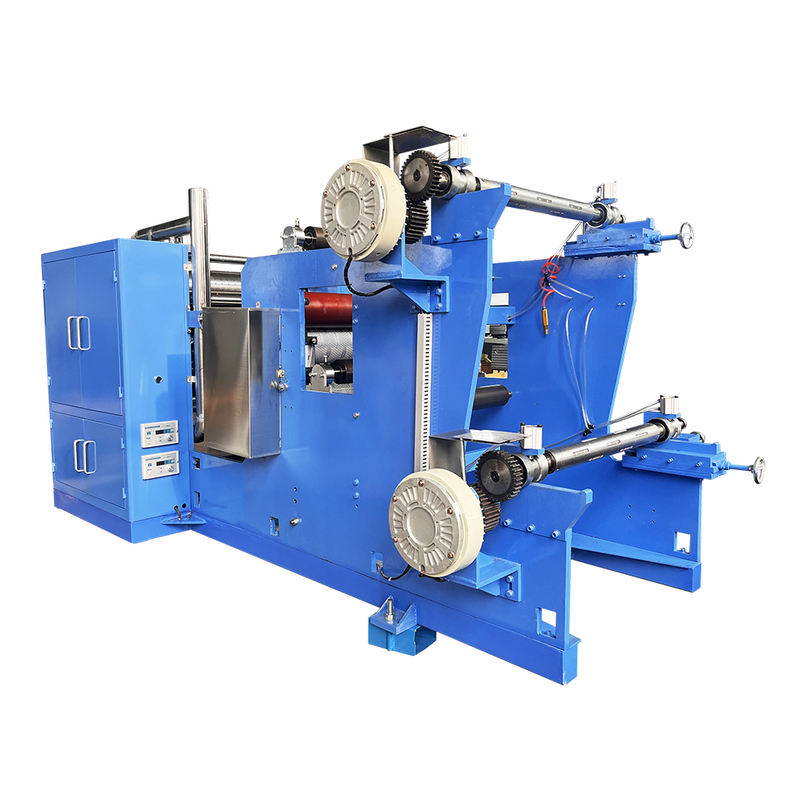

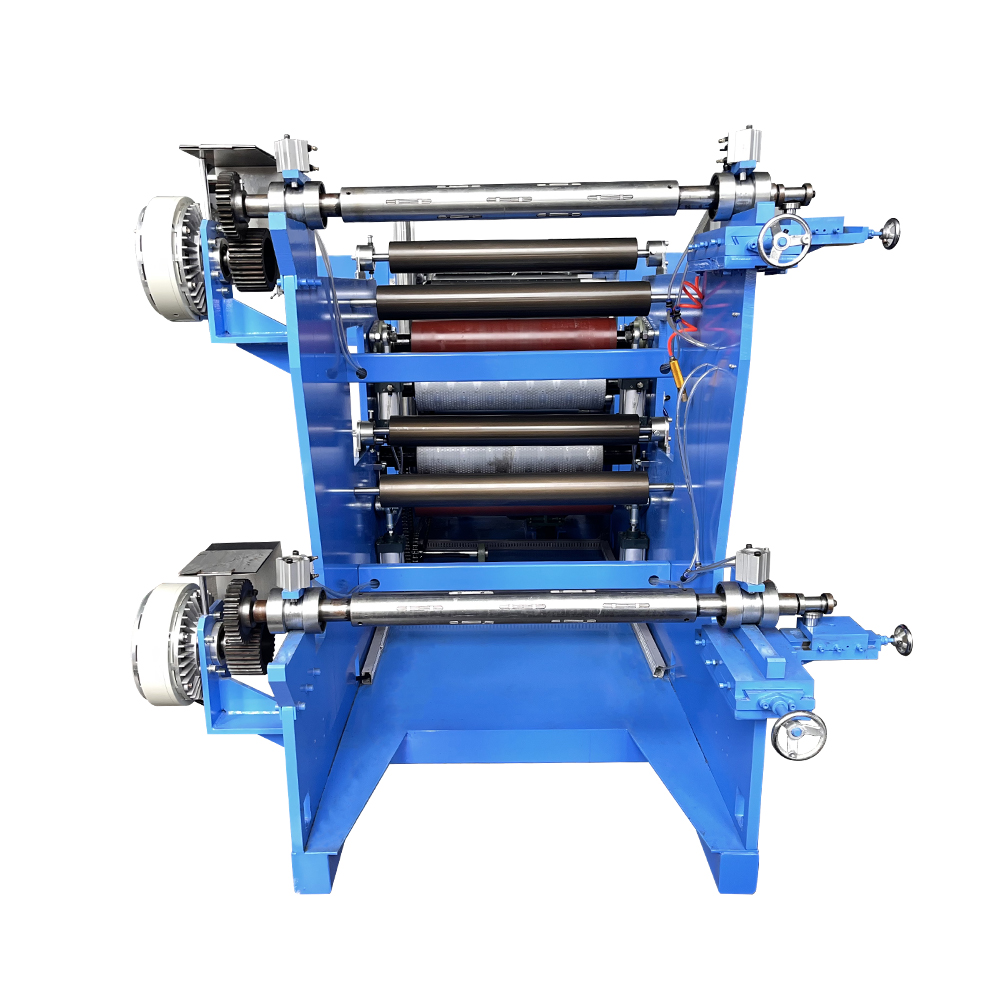

Product Images:
