HAFA-850
FITLIFE

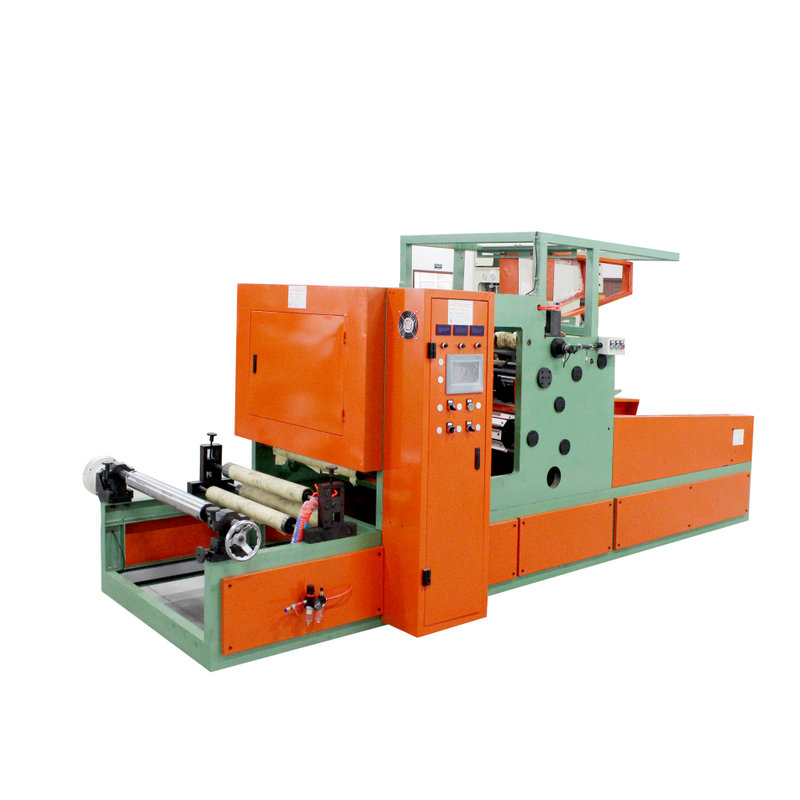

The machine is the fully automatic shunt winding and cutting machine with foil-type materials. It is researched by Zhangjiagang Fineness Aluminum Foil Co., Ltd. in the latest time and applied to the shunt winding processing work of the soft foil materials. Because of this machine adopts advanced PLC as control system, realize the complete machine run, automatic feeding and baiting; aluminum foil cut long settings and display; stepless speed adjusting and display of the aluminum foil run line speed; shut off control; fault auto-diagnosis etc function. Aluminum foil transmit, the squirrel-cage rotation is adopt inverter and servo motor driver. Thus this machine has simple operation, safe and reliable, high automation degree and the highest production efficiency.
Feature:
I. Main Technical Parameter:
Type HAFA-850
1、Raw Material Aluminum Foil/ Baking paper
2、Thickness of Raw Materia: 0.009—0.025mm
3.Width of Raw Material: 100—460mm
4、Maximun Unwinding Diameter:q600mm
5、Inner Diameter of Raw Material Roll Core: p75mm
6.Ihner Diameter of Finished Product Roll Core: q25mm.qp30mm、p38mm
7.Cutting Length of Rol: 3—300m
8、Production Efficiency:24 pcs/minute (5m)
9.Decail Centering Stroke:+/20mm
10.Air Pressure: 0.5Mpa
11.Engine Model:Siemens panel,Misubishi servo, Mitsubishi PLC,Omron meter counter
12、Magnetic Powder Brake: 25N.m
13.Magnetic Powder Clutch: 25N.m
14.Overal Dimension:Length4000mm Width1550mm High1750mm
15.otal Power:approx4.5KW
16.Total Weight: approx 1700kg
17.Power supply: 380V,50Hz,3ph /220V,60HZ,3ph
18.The belt can changeto roller withlabel system but need charge extracost
19.Canautomaticfeed papercore-but need charge extra cost
