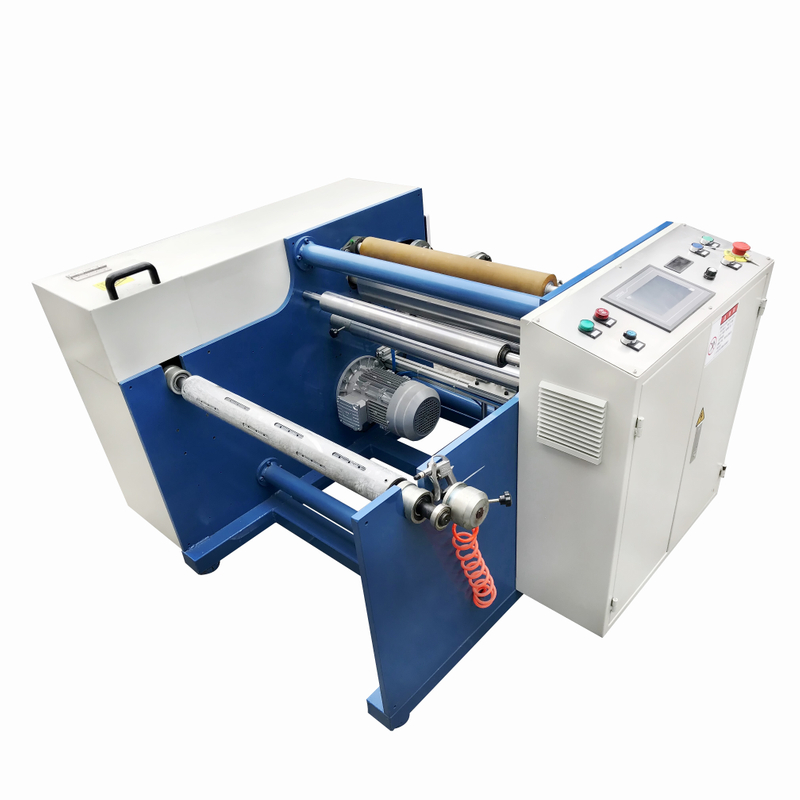

Semi-Automatic Silicone Paper Roll Aluminum Foil Baking Paper Slitter Rewinder Machine

HAFA580 Can rewind aluminum foil /Baking paper /Cling film,

it can make more than 1000m length size .the Min size can me 3m .

The normal speed can run at 300m/minute .

The machine guarantee 4 years free .

Main technical parameter

1、(Thickness of Raw Material)： 0.009—0.03mm

2、(Width of Raw Material)： 90—460mm

3、(Maximun Unwinding Diameter)： φ600mm

4、(Inner Diameter of Raw Material Roll Core)： φ75mm、

5、(Inner Diameter of Finished Product Roll Core):φ35mm、φ38 mm

6.(Cutting Length of Roll)： 30—500m

7、(Production Efficiency)： 4-5m/second

8.(Decoil Centering Stroke)： +/-0.05mm

9.(Air Pressure)： 0.5Mpa

10.(Magnetic Powder Cluch) ：100N.m

11. （Machine size ): 1.37*1.55*0.9m

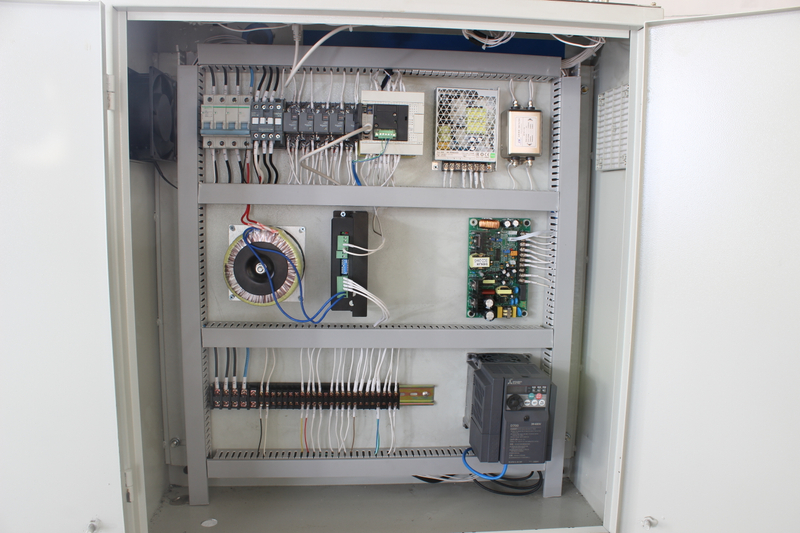

12. Japan Mitsubishi PLC, Japan Mitsubishi inverter, Omron meter counter,

 Taiwan Vaillant touch screen. Chint/Schneider switch
