HAFA-120
FITLIFE
|
Product Description

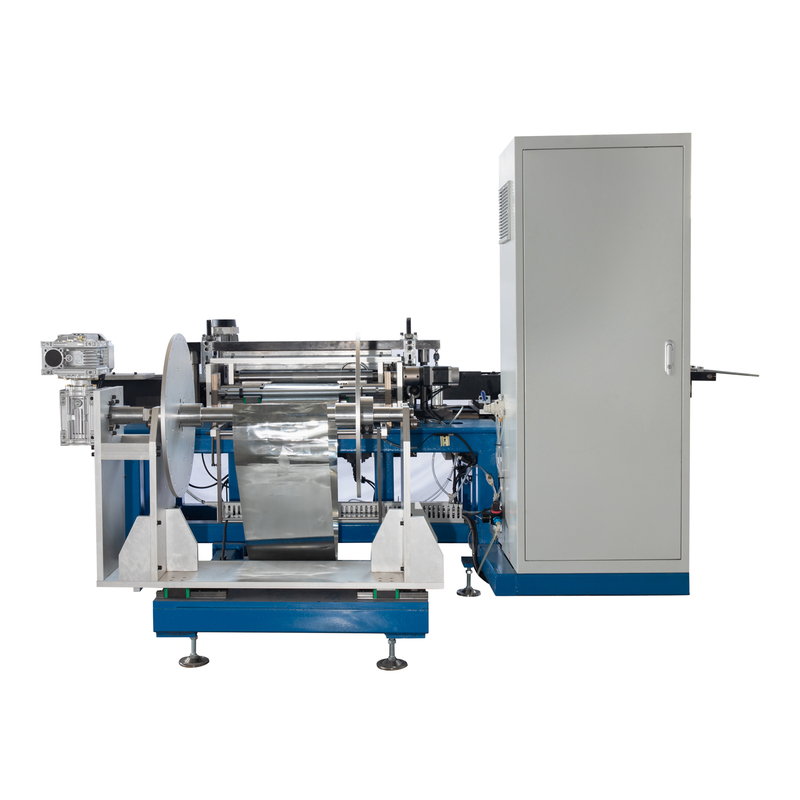

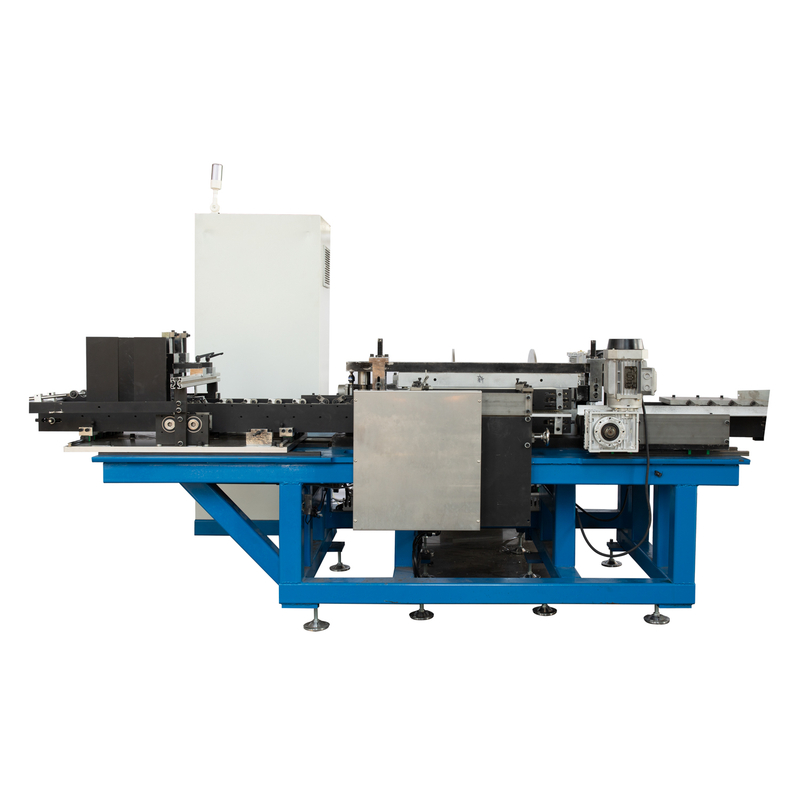

Machine size: length 2600, width 2100, height 1500. For ease of transport, it can be split into two parts with a size of 2900 * 1400 * 1500. The other part is 1400 * 1000 * 1200.
The total electrical power is 14kW. Equipped with five servo motors and two deceleration motors, servo motors, touch screen and PLC control using Xinjie brand,The sensor adopts the Omron brand, the components adopt the Schneider brand, and the pneumatic part adopts the Yade brand to ensure the stability and reliability of the equipment.
|
Product Details
|
PRODUCTION RANGE AND DATA
Color box range: between 150mm and 450mm in length and between 200mm and 350mm in width.
Sawtooth length range: between 150 mm and 450 mm.
Production speed: depending on the length of the color box, the production speed is between 80 and 100 times per minute.
Sawtooth width: can be adjusted arbitrarily, generally between 6 mm and 8 mm.
|
Finished product
|
Company Profile
zhangjiagang Fitlife Machinery Co.,Ltd is founded in 1992,It has registered capital of 2,800,000 USD,located in world famous tourism city Suzhou,100km away from Shanghai.
The company is dedicated to R&D, production and sales of aluminum foil related products and machines, such as household aluminum foil, hairdressing foil, silicone oil paper, aluminum foil jumbo roll, aluminum foil container, aluminum foil rewinding machines, Automatic box folding gluing machine, cartoning machine and aluminum foil container production line etc.
More than 90% of its products are exported abroad. With the pace of globalization, the company spares no effort in becoming a first-class supplier of such products.
|
Data SheetPower Source | Xinjie Servo Motor 7.5KW |
Max.Material Width | 450mm |
| Max.Material Diameter | 600mm |
Color box width rang | 200-350mm |
Color box length rang | 150-450mm |
Sawtooth length range | 150-450mm |
Sawtooth width range | 6-8mm (Can be adjusted arbitrarily) |
Speed | 85-140 pcs/min |
| sensor | Panasonic |
weight | 1200kg |
Dimension | 2600mm*2100mm*1500mm |
Feeding accuracy | 0.1mm |
Feeding Machine Power | 14kw |
Saw blade material | Tinplate/Aluminum |
|
Product Description
Machine size: length 2600, width 2100, height 1500. For ease of transport, it can be split into two parts with a size of 2900 * 1400 * 1500. The other part is 1400 * 1000 * 1200.
The total electrical power is 14kW. Equipped with five servo motors and two deceleration motors, servo motors, touch screen and PLC control using Xinjie brand,The sensor adopts the Omron brand, the components adopt the Schneider brand, and the pneumatic part adopts the Yade brand to ensure the stability and reliability of the equipment.
|
Product Details
|
PRODUCTION RANGE AND DATA
Color box range: between 150mm and 450mm in length and between 200mm and 350mm in width.
Sawtooth length range: between 150 mm and 450 mm.
Production speed: depending on the length of the color box, the production speed is between 80 and 100 times per minute.
Sawtooth width: can be adjusted arbitrarily, generally between 6 mm and 8 mm.
|
Finished product
|
Company Profile
zhangjiagang Fitlife Machinery Co.,Ltd is founded in 1992,It has registered capital of 2,800,000 USD,located in world famous tourism city Suzhou,100km away from Shanghai.
The company is dedicated to R&D, production and sales of aluminum foil related products and machines, such as household aluminum foil, hairdressing foil, silicone oil paper, aluminum foil jumbo roll, aluminum foil container, aluminum foil rewinding machines, Automatic box folding gluing machine, cartoning machine and aluminum foil container production line etc.
More than 90% of its products are exported abroad. With the pace of globalization, the company spares no effort in becoming a first-class supplier of such products.
|
Data SheetPower Source | Xinjie Servo Motor 7.5KW |
Max.Material Width | 450mm |
| Max.Material Diameter | 600mm |
Color box width rang | 200-350mm |
Color box length rang | 150-450mm |
Sawtooth length range | 150-450mm |
Sawtooth width range | 6-8mm (Can be adjusted arbitrarily) |
Speed | 85-140 pcs/min |
| sensor | Panasonic |
weight | 1200kg |
Dimension | 2600mm*2100mm*1500mm |
Feeding accuracy | 0.1mm |
Feeding Machine Power | 14kw |
Saw blade material | Tinplate/Aluminum |
