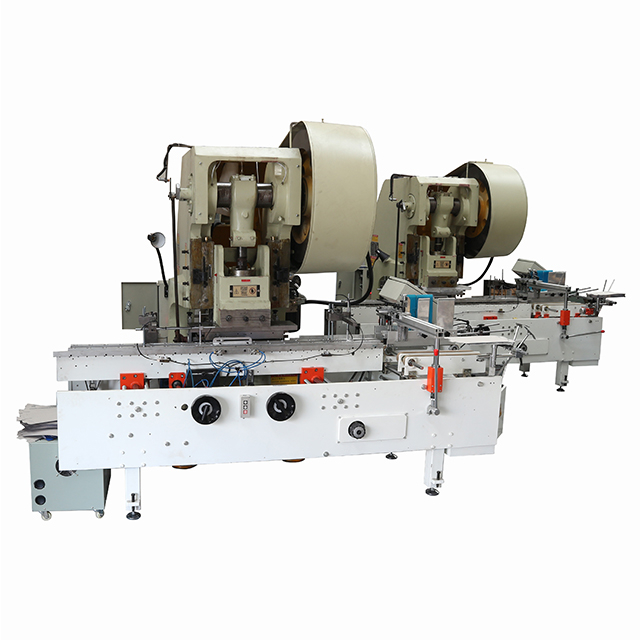

Automatic Saw Blade Press Machine

1、Max.Pressure: 600kn

2、Max.Material Width:457mm

3、Max.Material Diameter: 600mm

4、Speed: 40-60pcs/min

5、Slide Stroke: 120-260mm

6、Mould Loading Height:210-270mm

7、Mould Adjustable Height:60mm

8、Press Power:4.5kw

9、Press weight: 3900kg

10、Press Dimension:2300mm*1600mm*3300mm

11、Feeding Machine Size:2300mm*800mm*800mm

12、Feeding accuracy:±0.1mm

13、Feeding Machine Power: 2.5kw

14、Air pressure: 0.5-0.75MPA

15、Saw blade material: Tinplate/Aluminum
