AF-63AT
FITLIFE

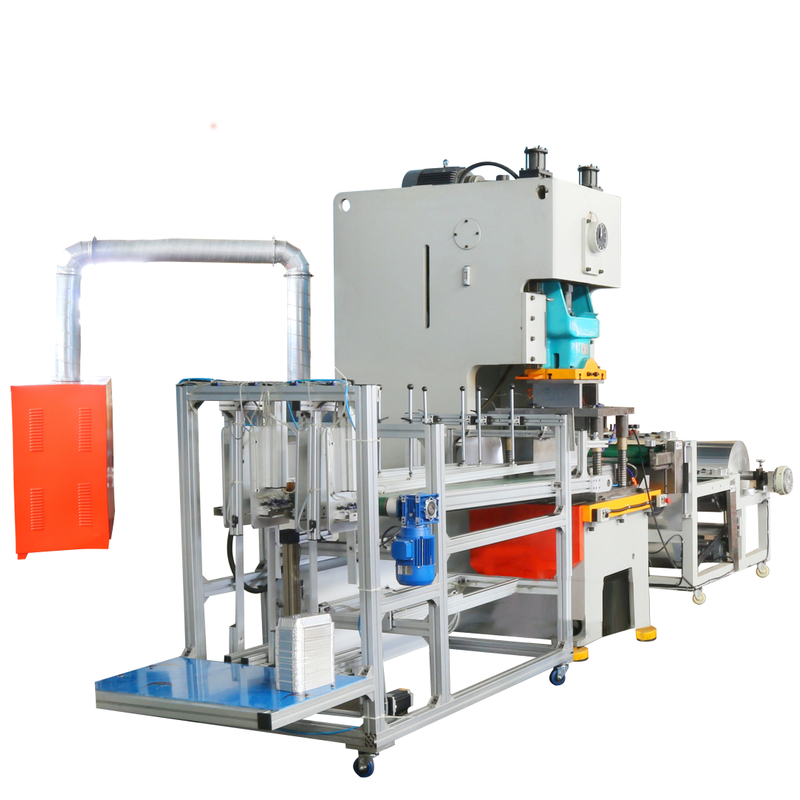

63AT Aluminum Foil Container Making Machine
AF-63AT is the five cavities capacity model production line for aluminum foil container. Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation. AF have 45ton,63Ton,80ton,110Ton, Common feeder,Embossing feeder ,Common collector and Auto Stacker, Automatic scrap system for your option.
 | PRODUCT SPECIFICATIONS |
Max.Pressure | 630kn |
Max.Material Width | 750mm (OEM) |
Max.Material Diameter | 800mm |
Speed | 40-70pcs/min (1 cavity); 80-140pcs/min (2 cavities) |
Slide Stroke | 240mm |
Mould Loading Height | 550mm |
Mould Adjustable Height | 80mm |
Press Power | 11kw |
Press weight | 6300kg |
Press Dimension | 2300mm*1600mm*3300mm |
Feeding Machine Size | 2200mm*1700 mm*1500 mm |
Feeding accuracy | 土0.1mm |
Feeding Machine Power | 1.5kw |
Double Track Collector Size | 2500mm*1300mn *1600mm |
Double Track Collector Power | 3kw |
Lunch box size (Collector) | 100*100mm -250*350mm |
scrap baler machine | |
Voltage | 220V/60H ;380V/50Hz |
Gas pressure | 0.6Mpa |
| Product Details |
Feeding Machine
1-Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment.
2- One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning and widely adjusting range.The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is small, high efficiency, clean appearance, small size and easy installation, simple operation and low noise.

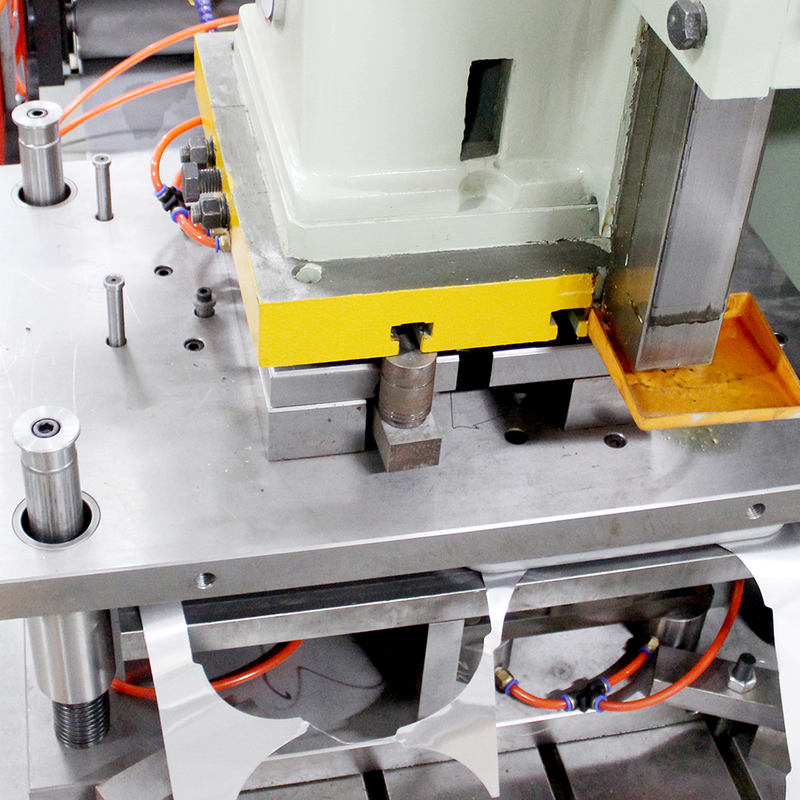

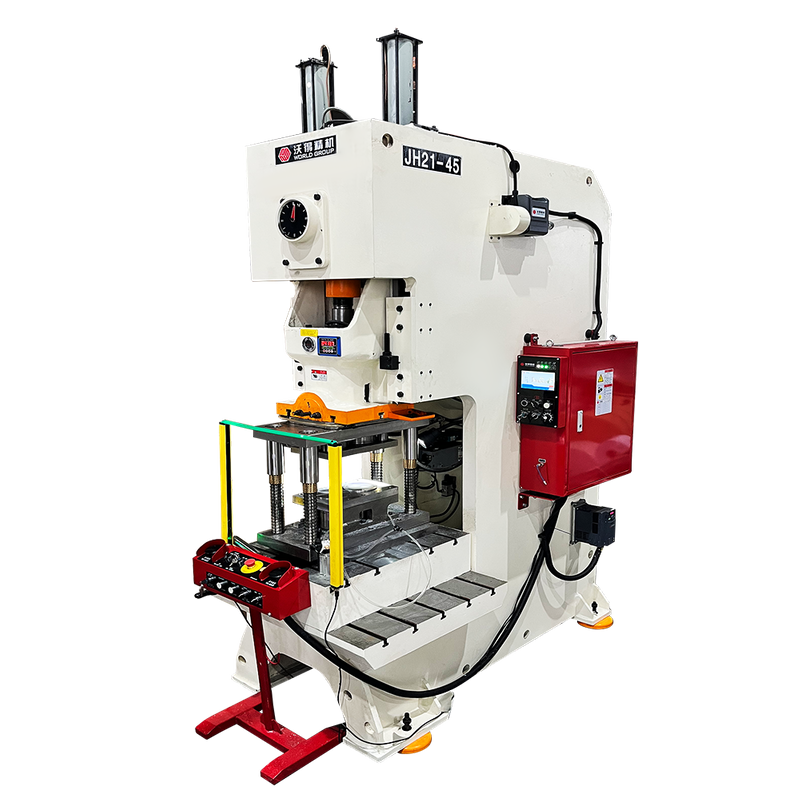

Punching Machine
1-High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses and meters,medical equipment,electrical home appliance and hardware.
2-Square figure long guide with six friction faces makesabrasion resistant and punching precision, drives stably with low noise and long service life.
3-PLC electric control system is

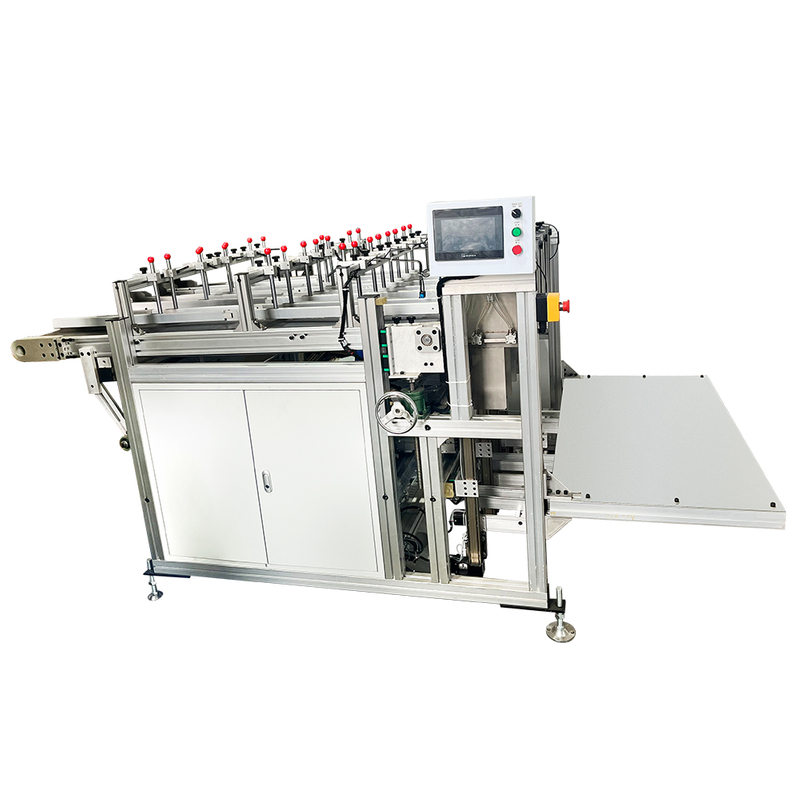

Automatic stacker
It is a assist system to collect containers.
2-Auto-counting function.

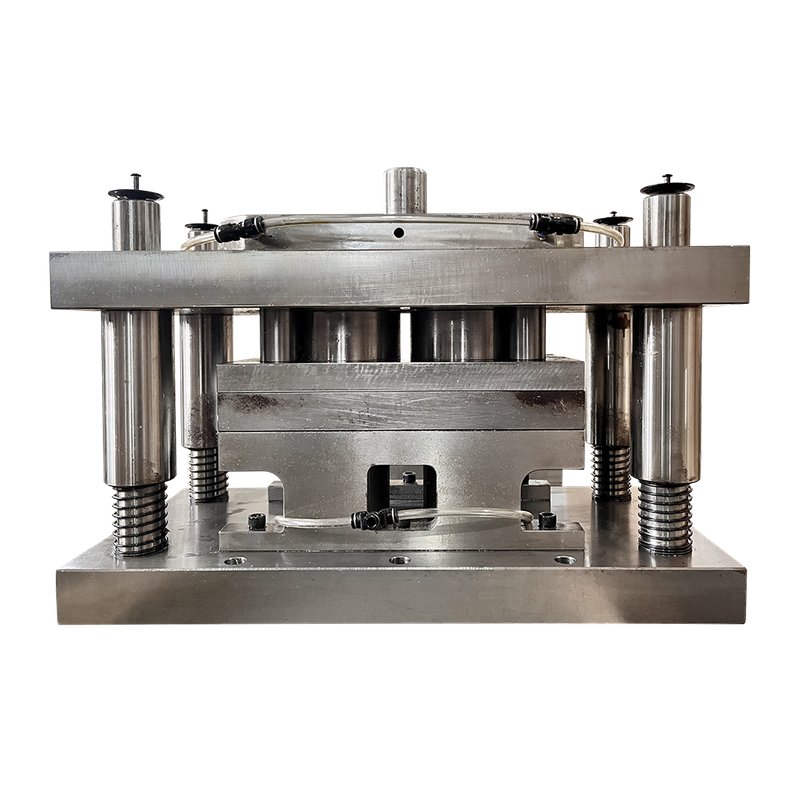

Mold
It is a assist system to collect containers.
| Finished Product Show |
Aluminum Foil Pizza Pan
Coffee Capsules
Gold Aluminium Foil Tray
Oven Use Aluminum Foil Plate
