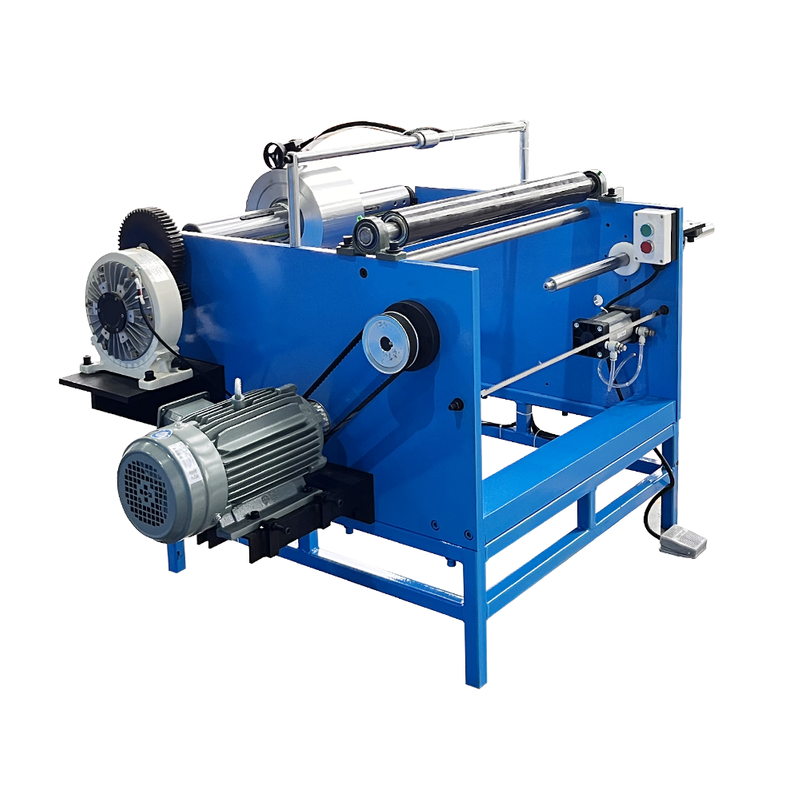

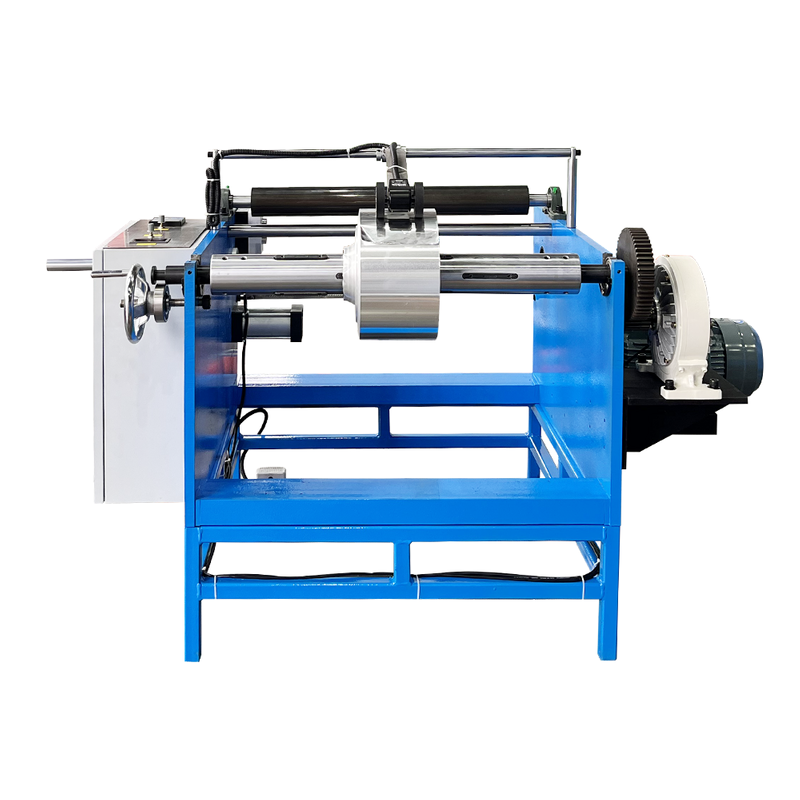

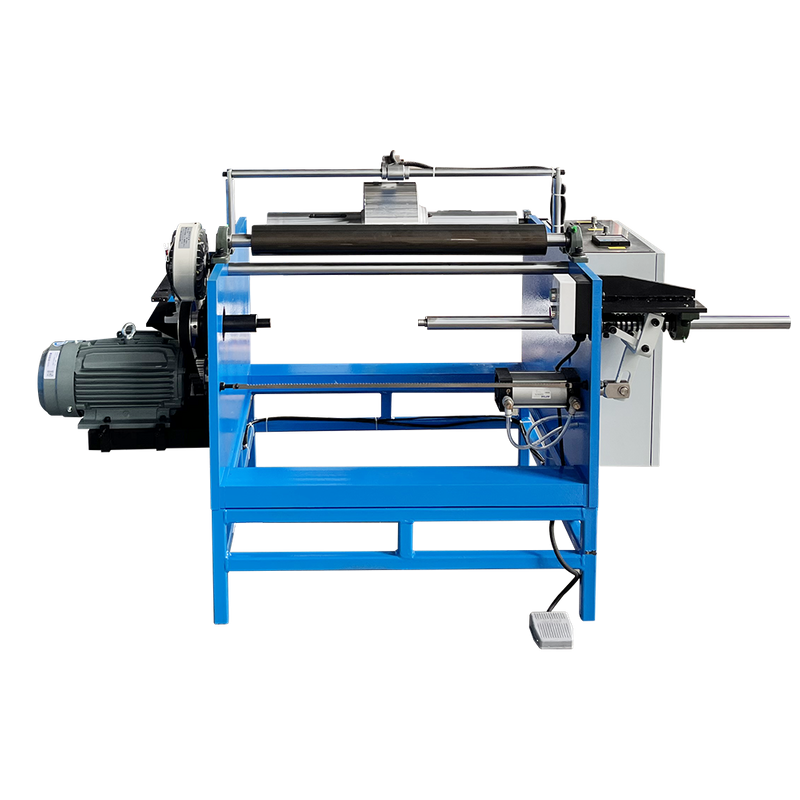

Good Efficiency Manual Foil Roll Rewinding Machine for Household Aluminum Foil Roll Making Machine

I. Main technical parameter

1、(Thickness of Raw Material)： 0.009—0.025mm

2、(Width of Raw Material)： 100—500mm (800mm OEM)

3、(Maximun Unwinding Diameter)： φ600mm

4、(Inner Diameter of Raw Material Roll Core)： φ75mm、

5、(Inner Diameter of Finished Product Roll Core):φ25mm、φ35mm、φ38 mm

6、(Cutting Length of Roll)： 1—200m

7、(Production Efficiency)： 2.5m/second

8.(Decoil Centering Stroke)： +/-20mm

9.Air Pressure)：No need

10.（Size):1350*840*960mm

11.（voltage）： 220V/1.5KW
