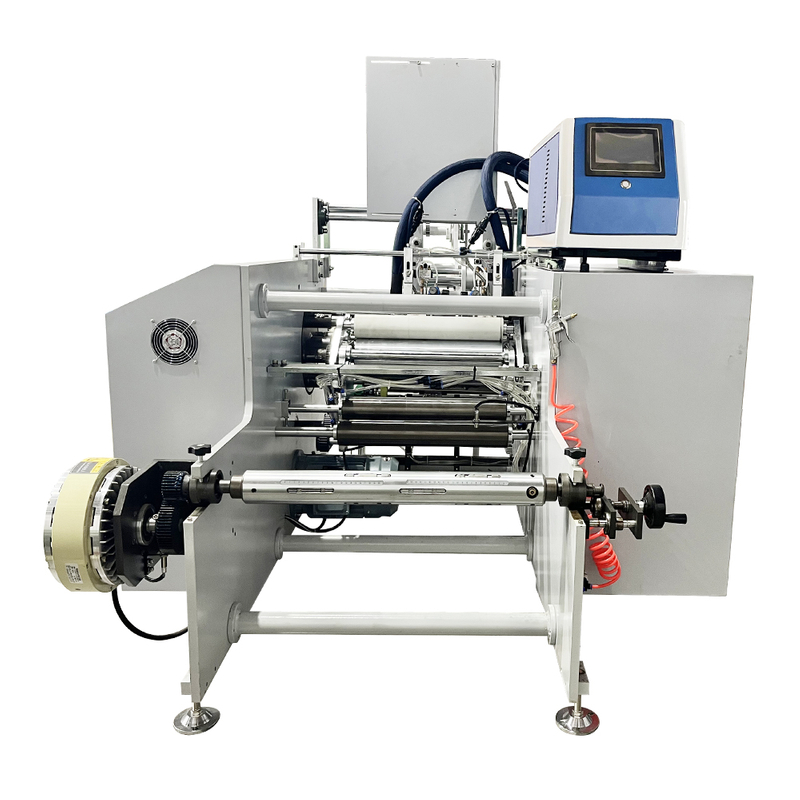

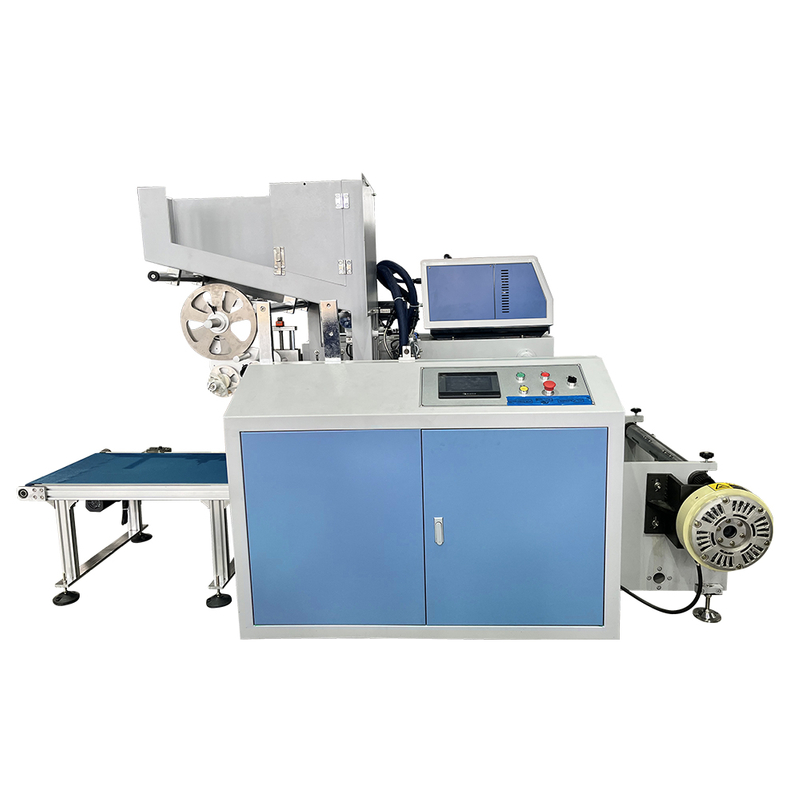

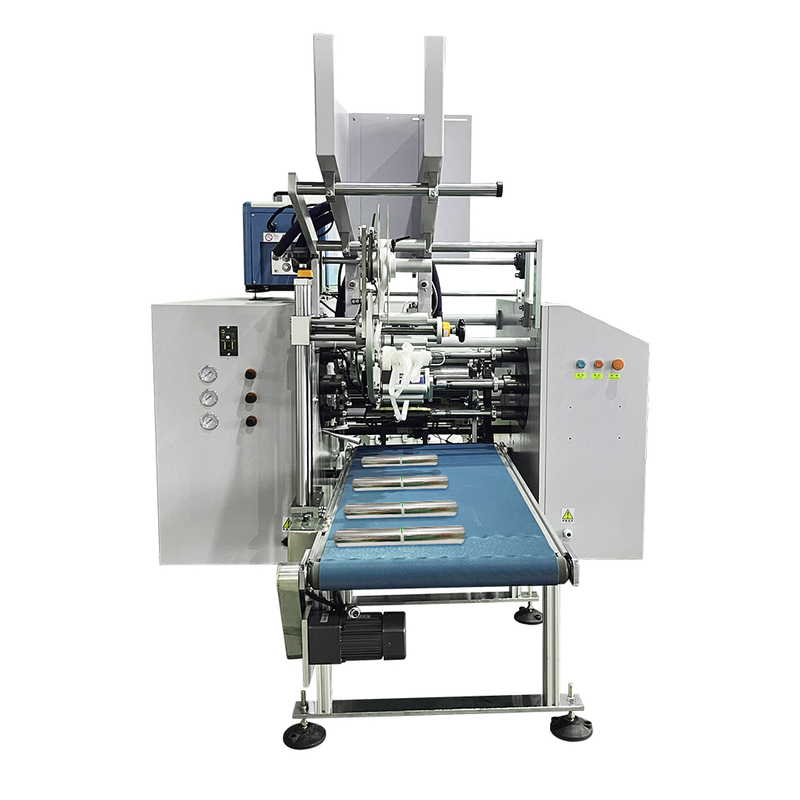

Automatic Aluminum Foil Roll Rewinding Machine Household Use Foil Roll Making Machinery

HAFA910 Can rewind aluminum foil /Baking paper /Cling film,

it can make more than 1000m length size .the Min size can me 1m .

The normal speed can run at 350m/minute .

The machine guarantee 4 years free .

Main technical parameter

Item: Aluminum foil rewinding machine

Rewinding Material :Aluminum foil, baking paper silicon paper plastic bag

Width of material :260-450mm

Width of products :260-450MM

Diameter of un-winder roll(Max) :Φ700mm

Diameter of re-winder roll(Max) :Φ90mm

Core size of un-winder: 3" or 6"

Core size of re-winder :30mm,35mm or 38mm(customized available)

Rewinding speed :350m/min

Thickness of material :0.009-0.025mm

Productivity :20-40pcs/min

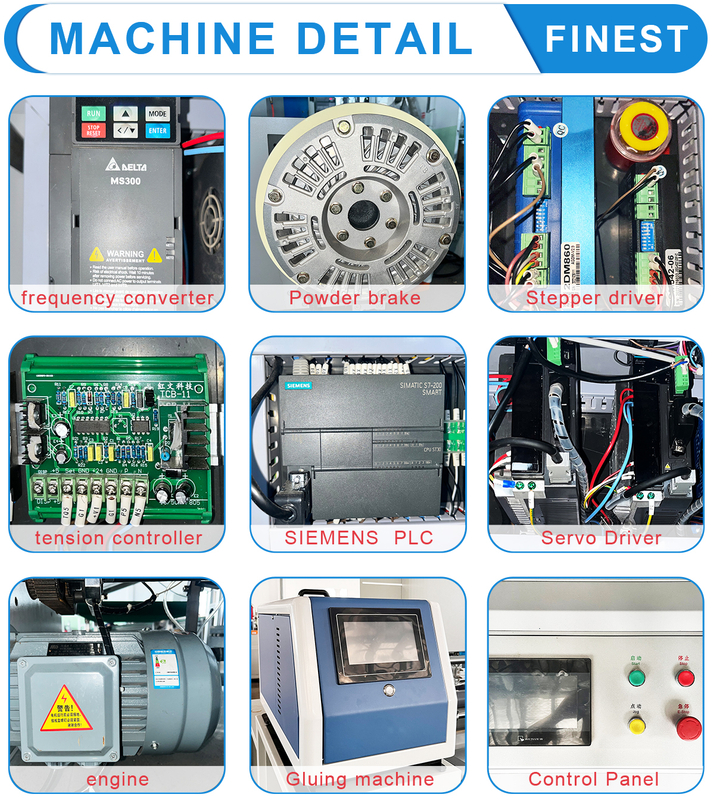

Main motor: 4kw

Air pressure :≥ 0.5Mpa

Sticker motor: Servo

Invertor :Delta

PLC :SIEMENS GERMANY

Touch screen: Weinview

Hotmelt glue machine :China brand

Unwind and rewind tension :Automatic tension

Weight :1600kg

Packing Type: wooden case

Packing Size: 245*176*182cm
